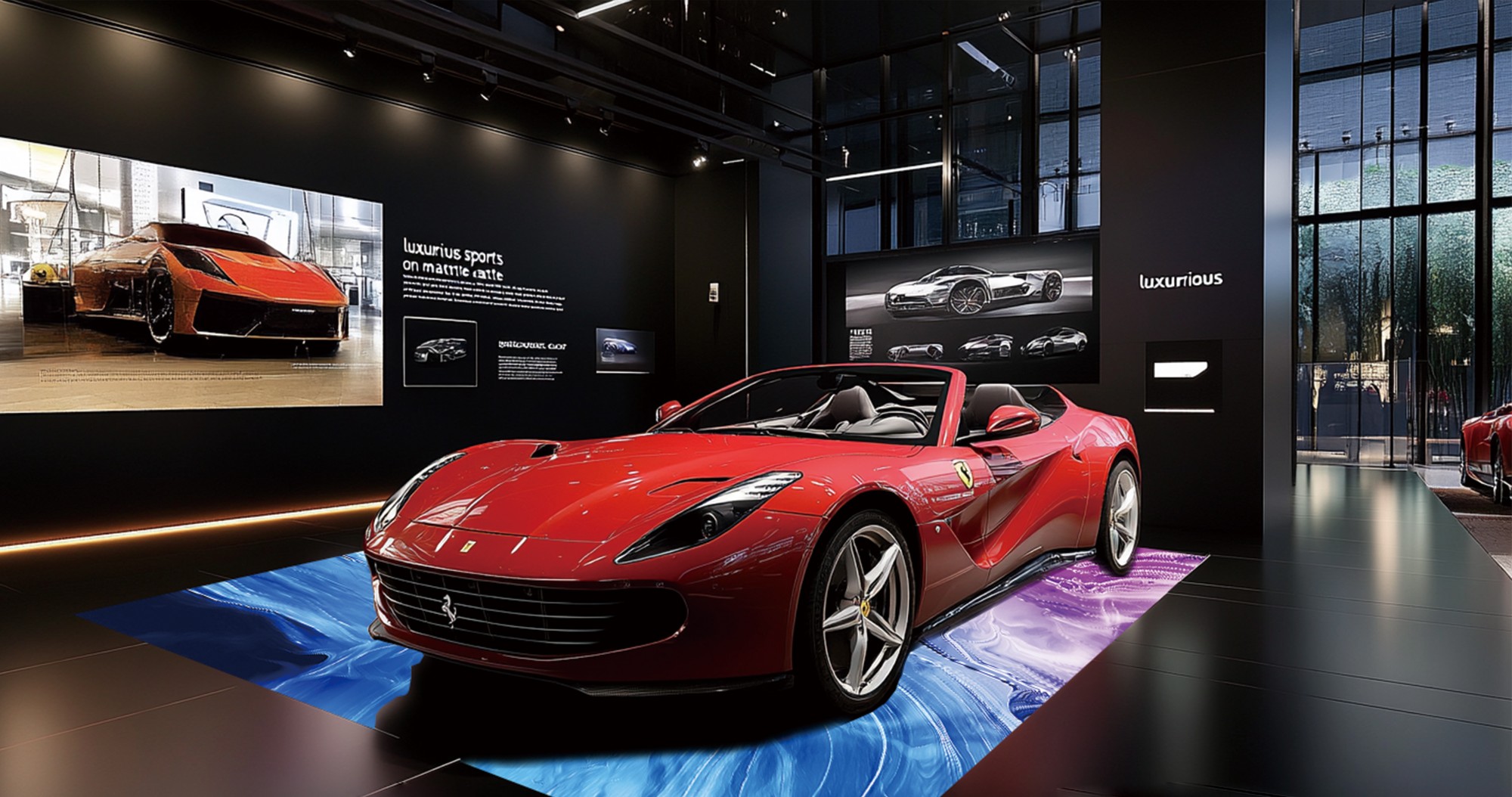

滚动地板显示器旨在取代传统的LED地板屏幕，只需铺设地毯即可安装。没有PC掩模，LED滚动地板显示器可以在高对比度下获得更出色的外观和显示效果，与传统的LED地板屏幕相比，它没有拼接缝隙问题，具有更好的平整度和完整性。

Product specifications

Scenico Rolling Floor LED Screen Series ( GOB )
Model	GOB-R1.25	GOB-R1.56	GOB-R1.953	GOB-R2.604	GOB-R3.91
Pixel Pitch	1.25mm	1.56mm	1.953mm	2.604mm	3.91mm
LED Configuration	SMD1010	SMD1010	SMD1010	SMD1515	SMD2121
Pixel Density	640000dot/m2	409600dot/m2	262144dot/m2	147456dot/m2	65536dot/m2
Module size	250x62.5mm	500x62.5mm	500x62.5mm	500x62.5mm	500x62.5mm
Module Resolution	200X50 dot	320x40 dot	256X32 dot	192X24 dot	128X16 dot
Scanning Mode	50S	40S	32S	24S	16S
Screen Weight (kg/㎡)	15	15	15	15	15
IP Rating ( front/back)	IP63/IP21	IP63/IP21	IP63/IP21	IP63/IP21	IP63/IP21
Brightness Intensity	600CD/m2	600CD/m2	700CD/m2	750~1000CD/m2	750~1000CD/m2
Viewing Angle	140°	140°	140°	140°	140°
Viewing Distance (meter)	≥1.2	≥1.5	≥1.9	≥2.6	≥3.9

Color Depth	12~16bit
Colors	4,096~65,536
Refresh Frequency	≥3840HZ
Application	Indoor
Input Voltage (V)	DC24V
Control Mode	Nova/Colorlight
Operation Power	AC110V/220V-50Hz/60Hz
Max Power Consumption	512W/sqm
Ave Power Consumption	170W/sqm
Operating Temperature	-20°C/+50°C (working)
	-40°C/+60°C (storage)
Operating Humidity	10%~60% (working)
	10%~90% (storage)
Lifespan (hours)	100,000hours
Maintenance Way	front & rear
LED	Kinglight
IC	ICN2076 / ICN 1065S
Control System	Built-in Novastar A5S plus/colorlight receiving card
